Description

8 recording tracks on hard disk and either 2 recording tracks or Mirroring on CF Card.

The ideal companion for on location multi-track recording,

documentaries, classical music. Perfect Gain control and advanced linking capabilities.

Recording capabilities: 44,1 up to 192kHz @ 24bits and 16 bits (dithering)

File format: *.WAV with BWF chunk and iXML metadata

File structure: Mono – Stereo – Polyphonic

8 Recording tracks on the HD, 2 Recording tracks or mirroring on the CF Card.

Comprehensive Cross-matrix system for easy routing and mixing

User configurable Monitoring

Small and robust construction

Friendly user interface, comprehensive and intuitive menu structure

Battery or external DC operated

KEY FEATURES

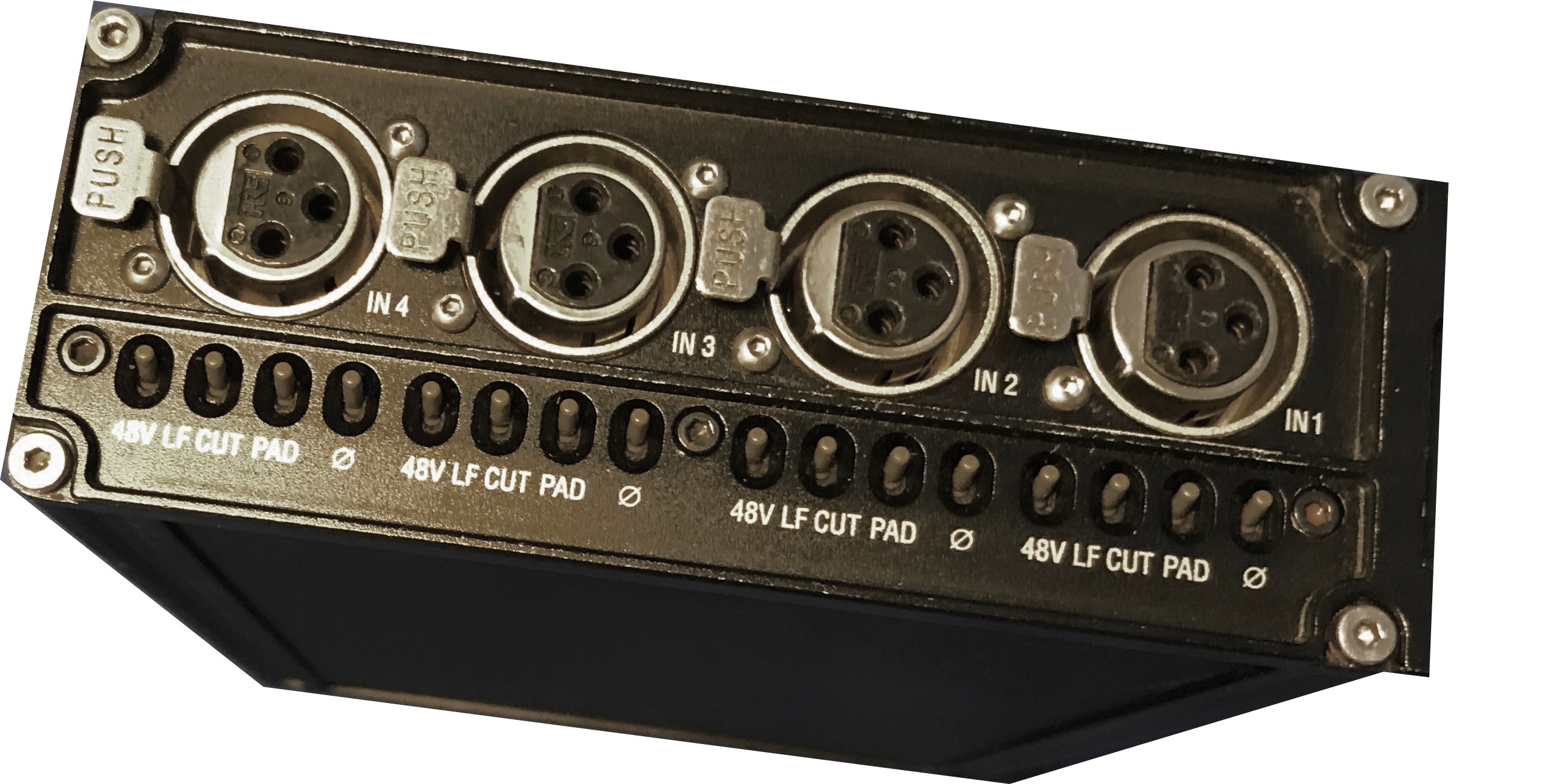

4x electronically balanced Mic/Line Input with RF Filter, XLR connectors

Low noise, large bandwidth semi-discreet microphone preamplifier

48V Phantom for Mic powering

 Pre LF Cut for rough wind conditions, PAD, Phase reversal

High quality Limiter on each input, Led level indicators

Channel linking ( on gain ) : 1 to 2 or 4 / 2 to 3 or 4 / 3 to 4

ideal for one or two stereo pairs or M/S pair and even Soundfield B-Format

1x stereo unbalanced adjustable Line input on TA3 connector4 x AES Digital input (8 digital channels)

Sampling rate from 44,1 up to 192kHz at 24bits, including NTSC Pull Up / Pull Down 0.1%

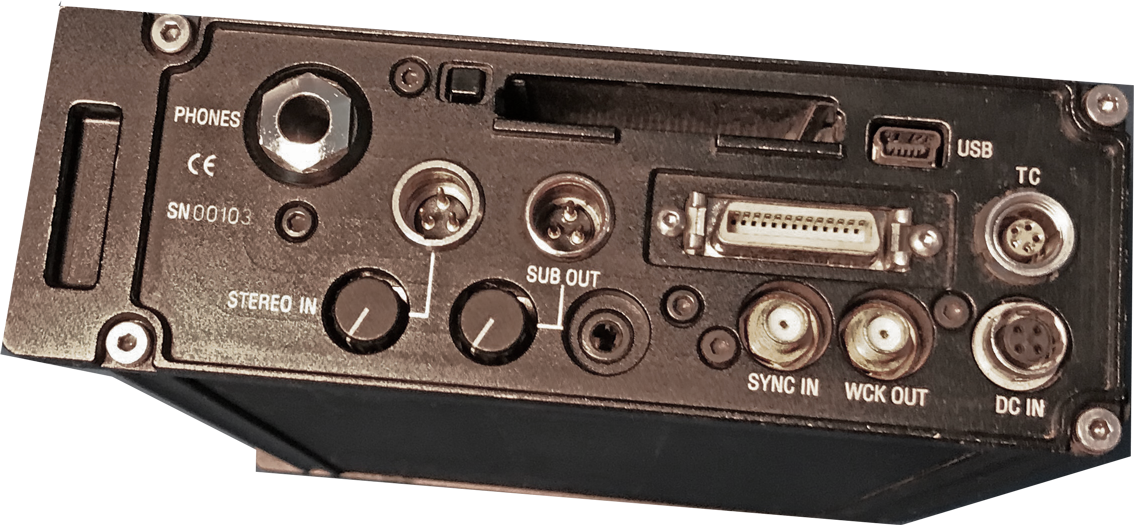

Timecode In & Out, all formats, follow the pull up/down

Wordclock In & Out, Video Sync In all format including Tri-level & Bi-level sync

Unbalanced Stereo/Mono pre-mix Line Outputs user configurable, on TA3 and Mini Jack for camera Link, wireless feeds or additional monitoring

Headphone out on 1/4″ Stereo JackMachined aluminum housing

Powered by six AA (LR6) batteries or external 6 – 18 VDC

Dimensions: 180 x 140 x 50 mm / 7,09″ x 5,5″ x 1,96″

Weight: 800 grams (1,75 lbs) without batteries, 990 grams (2,18 lbs) with 6 AA rechargeable batteries
