Description

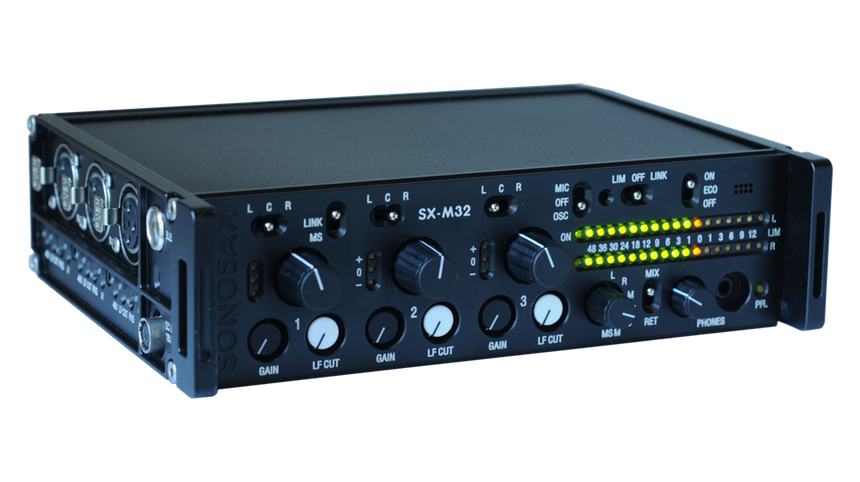

Compact and light weight high quality 3 channels Stereo ENG/EFP Mixer

Ideal companion for News – ENG – small documentaries – Folley’s – Music

Small and robust construction, low power consumption

KEY FEATURES

Electronically balanced Mic/Line Input,

XLR connectors

48V Phantom for Mic power

Pre LF Cut for rough wind conditions – PAD – Phase reversal

Input trim on the front panel for easy Mic Gain adjustment, retractableIndividual Input Limiters

Sweep LF Cut, retractable

Mix routing L-C-R

Stereo and MS linking of channel 1 and 2

M/S Decoder

PFL for rapid channel monitoring in headphones

Stereo Bus Input for external link

Switchable Limiter on the Mix

Comprehensive Monitoring selector withM/S decoder

LED peak-meters with fast ballistics

Electronically balanced Line Outputs, XLR connectors

Stereo Sub-Out, Line/Mic level on TA-3 connector

Mono Line/Mic level output for wireless link to camera on TA-3 connector

Adjustable Return input for monitoring, assignable to the Mix

AES Digital Out, 48 and 96kHz@24bits / choice for 48/16 or 192/24

Choices of Right side panel: Standard or with channels Direct Outs Pre & Post

Optional multi-way connectors

Machined aluminum housing

Dimensions: 176 x 138 x 46 mm / 6,93″ x 5,43″ x 1,75″

Weight: 800 grams (1,76 lbs) with batteries

Powered by 6x AA batteries or external 6 – 18 VDC
